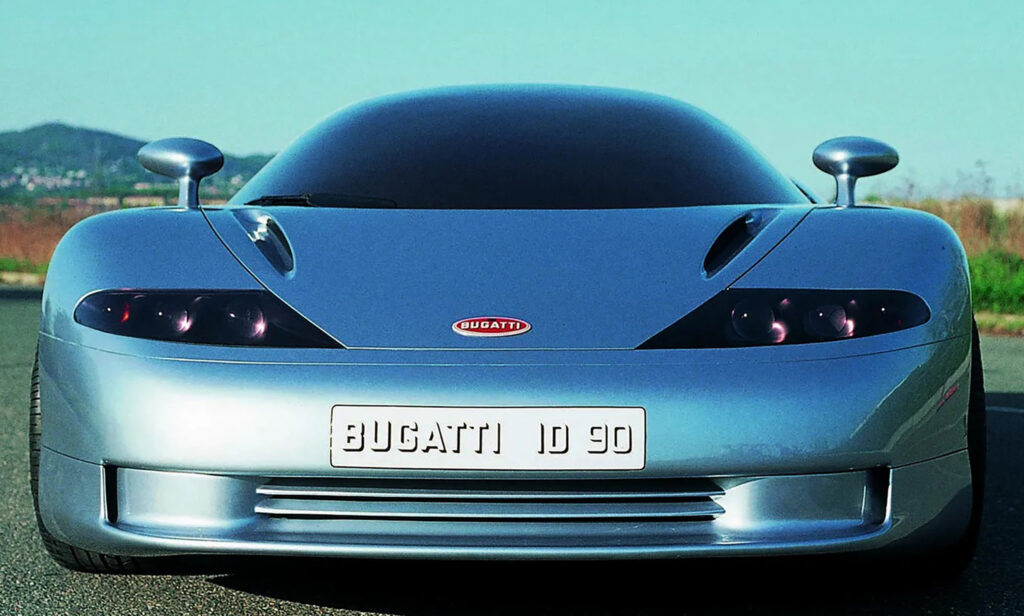

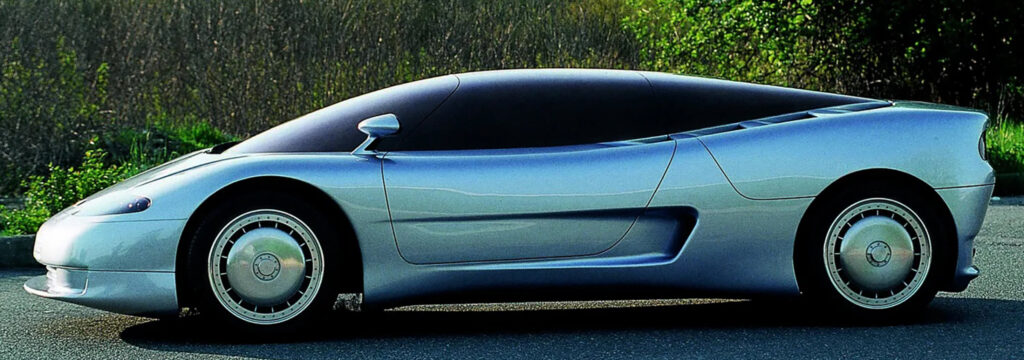

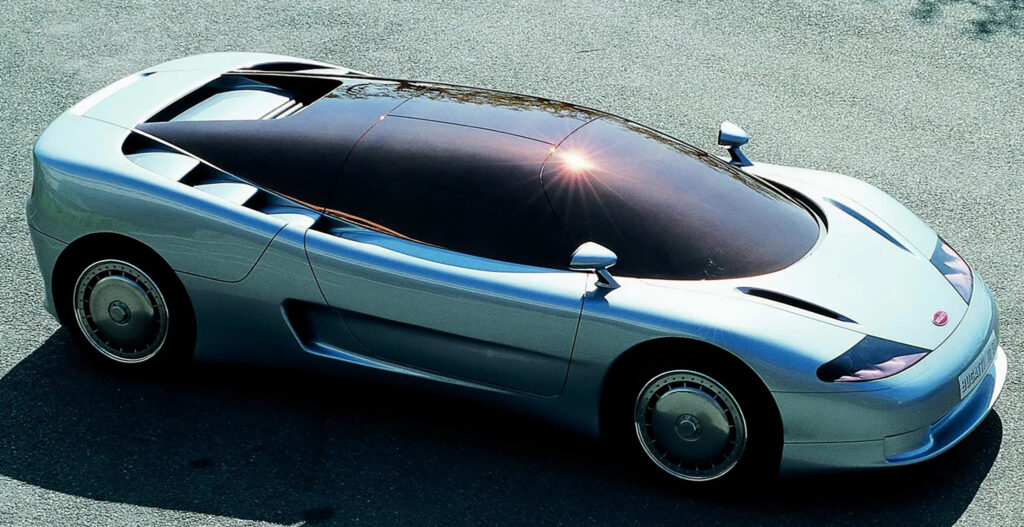

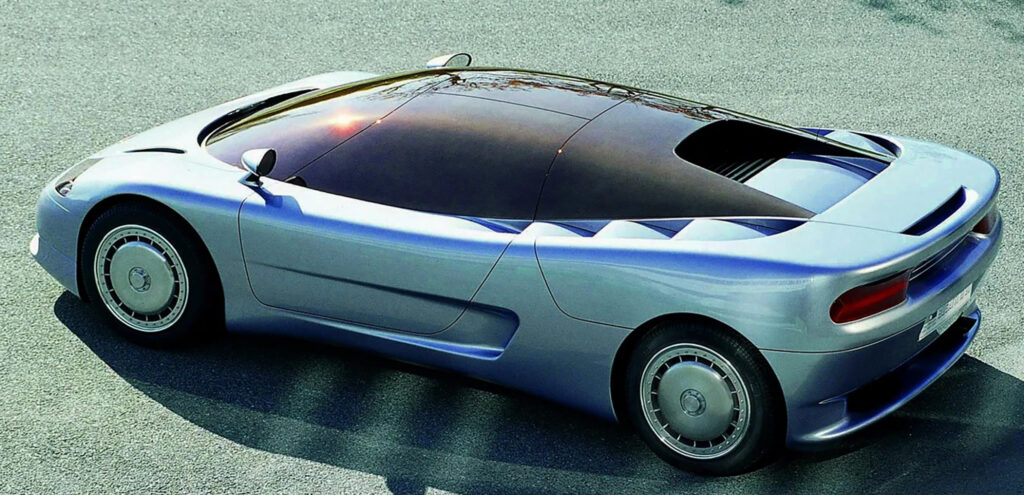

This is the very first Bugatti designed by Giugiaro, the concept also shared some of the styling cues with the EB 110 production model. It had a mid-mounted 3.5-liter V12 engine with four turbochargers and all-wheel drive. It received a set of retro-flavored wheels as a nod to the 1926 Royale.

bhp/weight	bhp per tonne
driven wheels	Longitudinal Mid Engine / 4WD
f brake size	mm / in
r brake size	mm / in
wheelbase	2550 mm / 100.4 in
front track	1550 mm / 61.0 in
rear track	1550 mm / 61.0 in
length	4100 mm / 161.4 in
width	1840 mm / 72.4 in
height	1090 mm

DIMENSIONS & WEIGHTS
WHEELBASE	2550 mm	100.4 inches
TRACK/TREAD (FRONT)	1550 mm	61 inches
TRACK/TREAD (REAR)	1550 mm	61 inches
LENGTH	4100 mm	161.4 inches
WIDTH	1840 mm	72.4 inches
HEIGHT	1090 mm	42.9 inches
GROUND CLEARANCE
LENGTH:WHEELBASE RATIO	1.61
KERB WEIGHT
WEIGHT DISTRIBUTION
FUEL TANK CAPACITY
AERODYNAMICS
DRAG COEFFICIENT
FRONTAL AREA
CDA
POWERTRAIN
ENGINE TYPE	turbocharged petrol
ENGINE MANUFACTURER	Bugatti
ENGINE CODE
CYLINDERS	V 12 in 60° vee
CAPACITY	3.5 litre 3498 cc (213.461 cu in)
BORE × STROKE	81 × 56.57 mm 3.19 × 2.23 in
BORE/STROKE RATIO	1.43
VALVE GEAR	double overhead camshaft(DOHC) 5 valves per cylinder 60 valves in total
MAXIMUM POWER OUTPUT
MAXIMUM TORQUE
ENGINE CONSTRUCTION	alloy block & head
SUMP	dry sumped
COMPRESSION RATIO
FUEL SYSTEM
BMEP (BRAKE MEAN EFFECTIVE PRESSURE)
MAXIMUM RPM
CRANKSHAFT BEARINGS
ENGINE COOLANT	Water
UNITARY CAPACITY	291.5 cc
ASPIRATION	Turbo
COMPRESSOR	4 IHI turbochargers
