1926 Bugatti Type 38

Replacing the Type 30, the Type 38 was a road-tourer featuring a second generation straight-eight, two-liter engine. The first inline-eights had built up a great reputation with the Type 30. As such many components remained the same including the crankshaft.

Compared to the Type 30, the Type 38 introduced a longer wheelbase and a wider track. The engine was very similar to the Type 35A unit, having a triple ball-bearing crankshaft.

A select few Type 38s received the supercharger off the four-cylinder Type 37A. These car were correspondingly called the Type 38A.

Type 38s were produced for a short period from 1926, until 1927, when they were replaced by the Type 43. A few type 38s were built after 1927, but only in limited numbers. Total production to 385 Type 38s were made, with 39 having superchargers.

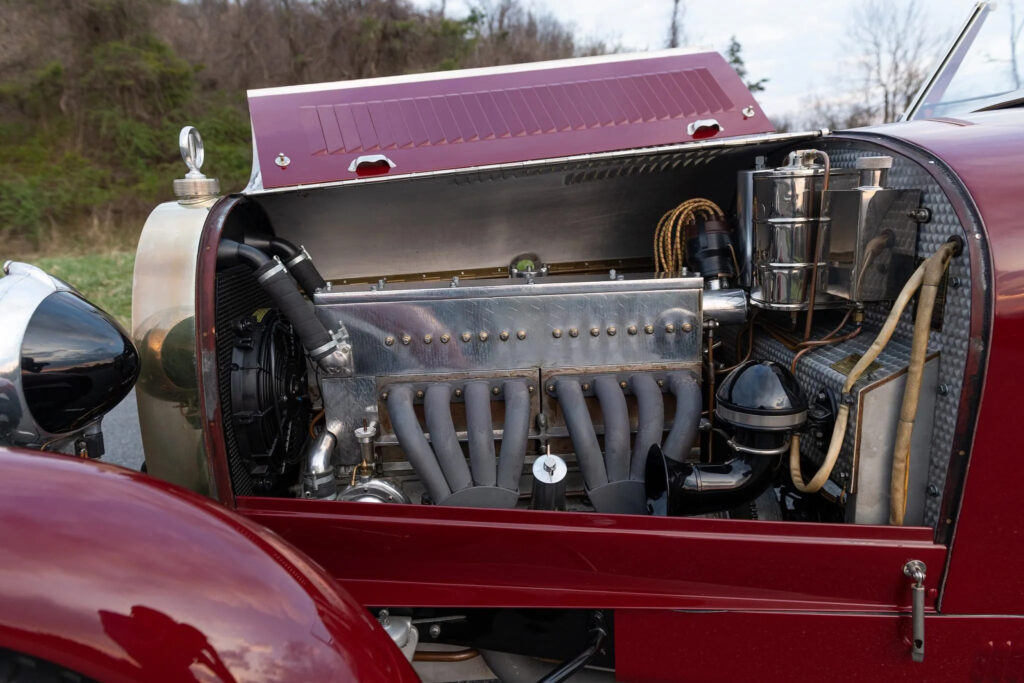

engineInline-8
positionFront Longitudinal
aspirationNatural
valvetrainSOHC, 3 Valves per Cyl
fuel feedTwin Zenith or Solex Carbs
displacement1990 cc / 121.4 in³
bore60 mm / 2.36 in
stroke88 mm / 3.46 in
power44.7 kw / 60 bhp
specific output30.15 bhp per litre
bhp/weight69.61 bhp per tonne
front tires5.00×19
rear tires5.00×19
front brakesDrums
f brake sizemm / in
rear brakesDrums
r brake sizemm / in
f suspensionRigid Axle w/Elliptic Springs
r suspensionRigid Axle w/Reversed Quarter-Elliptic Springs
curb weight862 kg / 1900 lbs
wheelbase3124 mm / 123.0 in
front track1250 mm / 49.2 in
rear track1250 mm / 49.2 in
transmission4-Speed Manual
