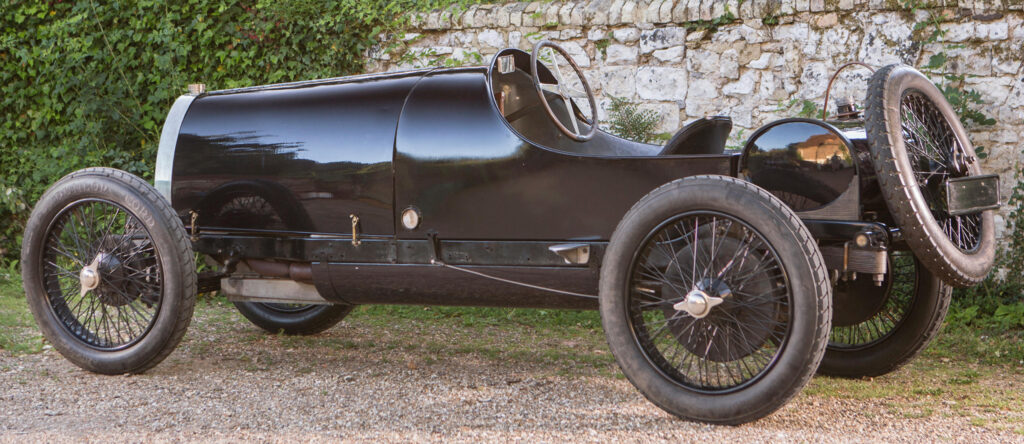

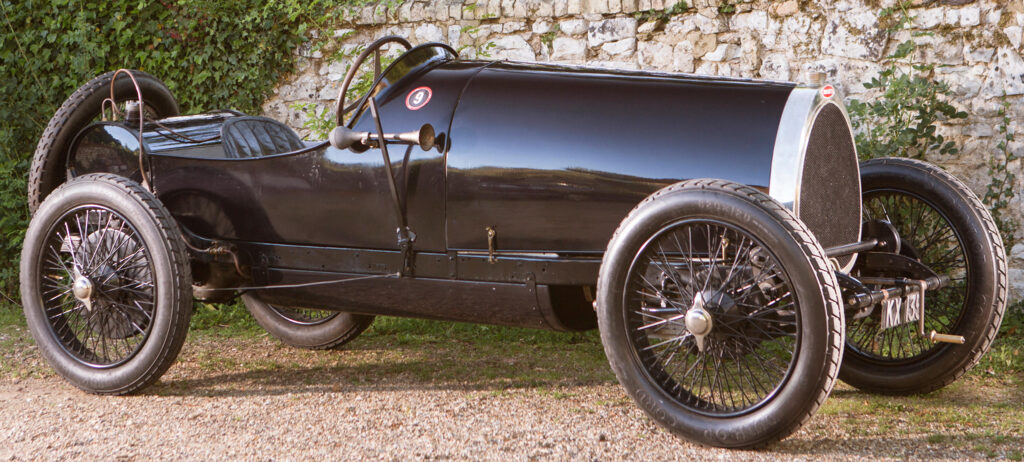

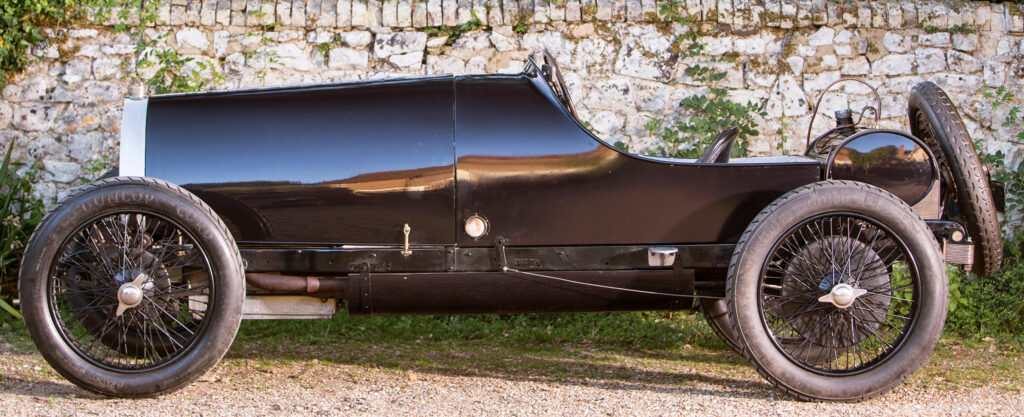

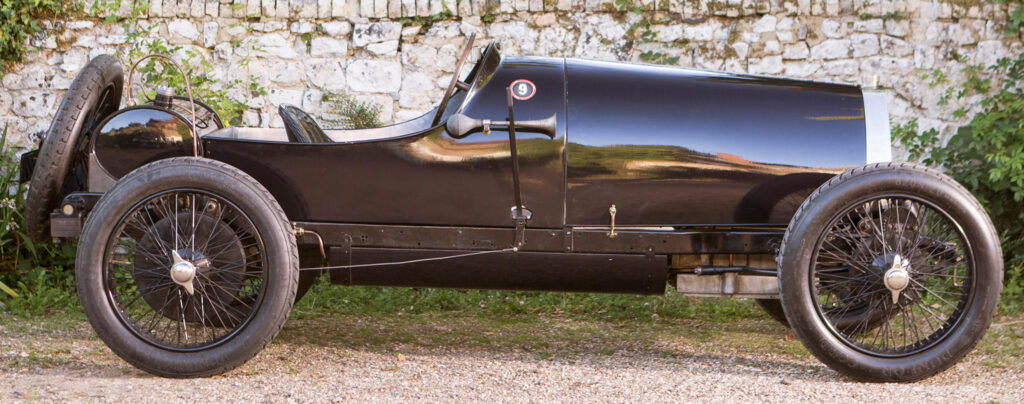

The Bugatti Type 23/30 was the first Bugatti race car to feature the Inline-8. Basically, the engine was placed in the Type 23 chassis which featured a wheelbase of 2.55 meters

These cars were specially made to race the French Grand Prix at Strasbourg in 1922. At the race the cars were very reliable and scored a respectable second and third place. Such a result was quite respectable as the Type 22/30 was largely untested and remained almost identical to the road-going Type 30.

Bugatti also ran at the only other GP of the year, the Italian GP. Due to improper gearing the cars were unable to perform in Italy. After no major victories, the 23/30 was replaced by the odd-ball Type 32 Tank for the 1923 season.

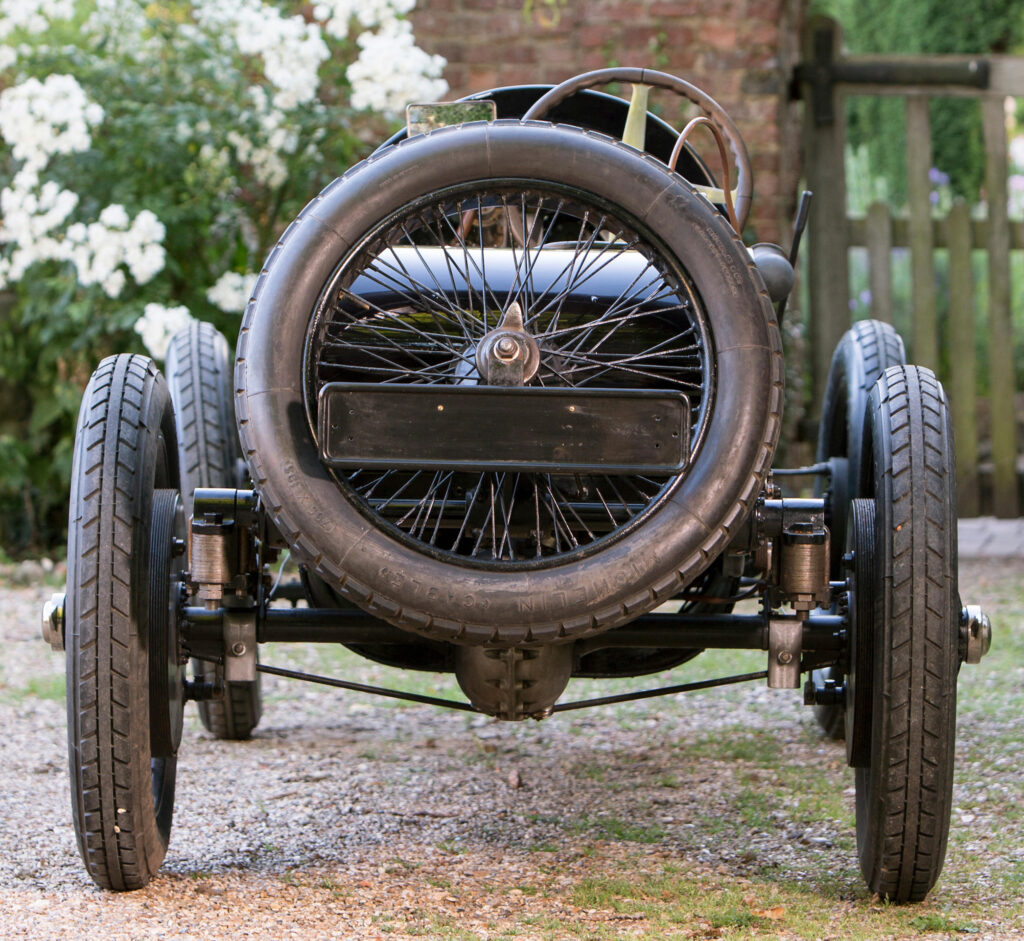

Highlights of the Type 22/30 include the exhaust which runs out of center of the rear bodywork and hydraulic front brakes.

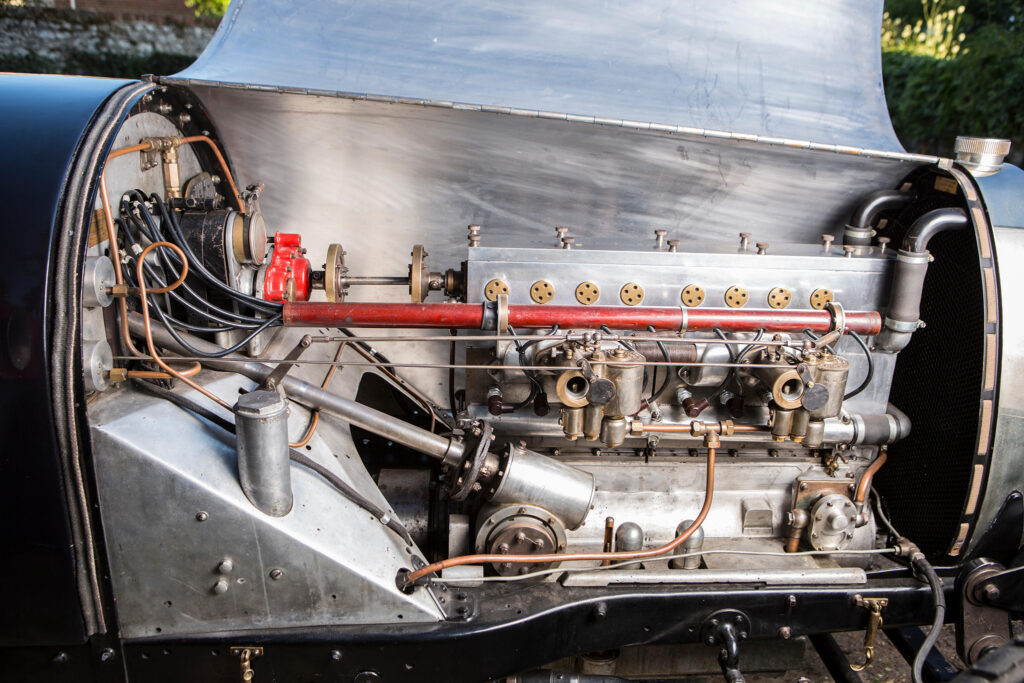

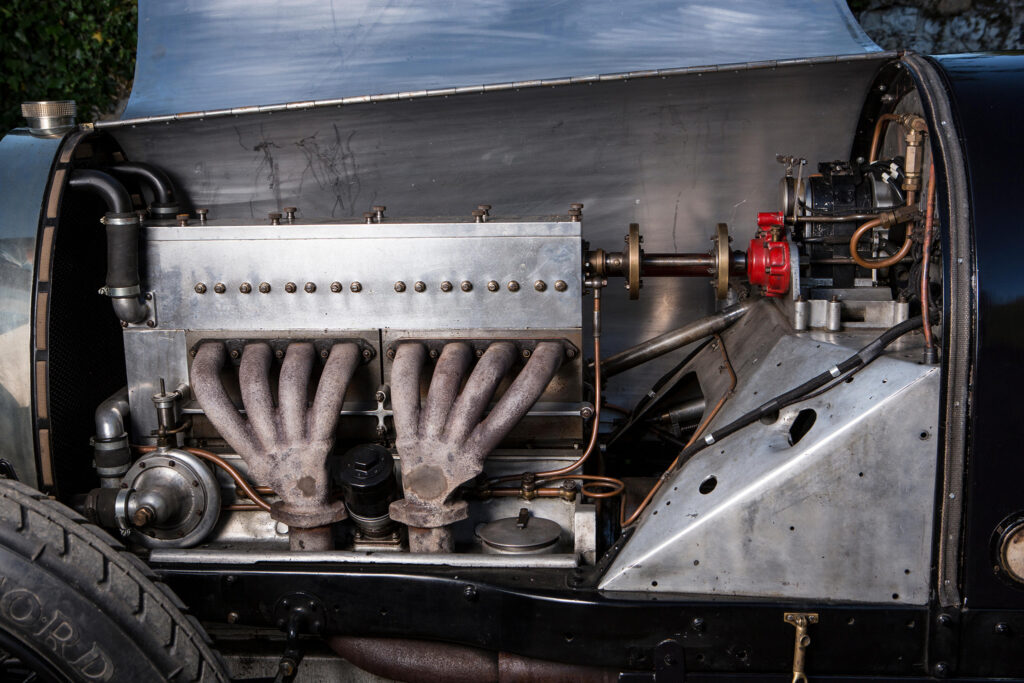

engine	Inline-8
position	Front Longitudinal
aspiration	Natural
valvetrain	OHV 3 Valves per Cyl
displacement	1991 cc / 121.5 in³
bore	60 mm / 2.36 in
stroke	88 mm / 3.46 in
power	44.7 kw / 60 bhp
specific output	30.14 bhp per litre
body / frame	Steel over Steel Chassis
driven wheels	RWD
front brakes	Hydraulic Drums
f brake size	mm / in
rear brakes	Drums
r brake size	mm / in
f suspension	Solid Axle w/Half-Elliptic Springs
r suspension	Live Axle w/Reversed Quarter Elliptic Springs
wheelbase	2550 mm
