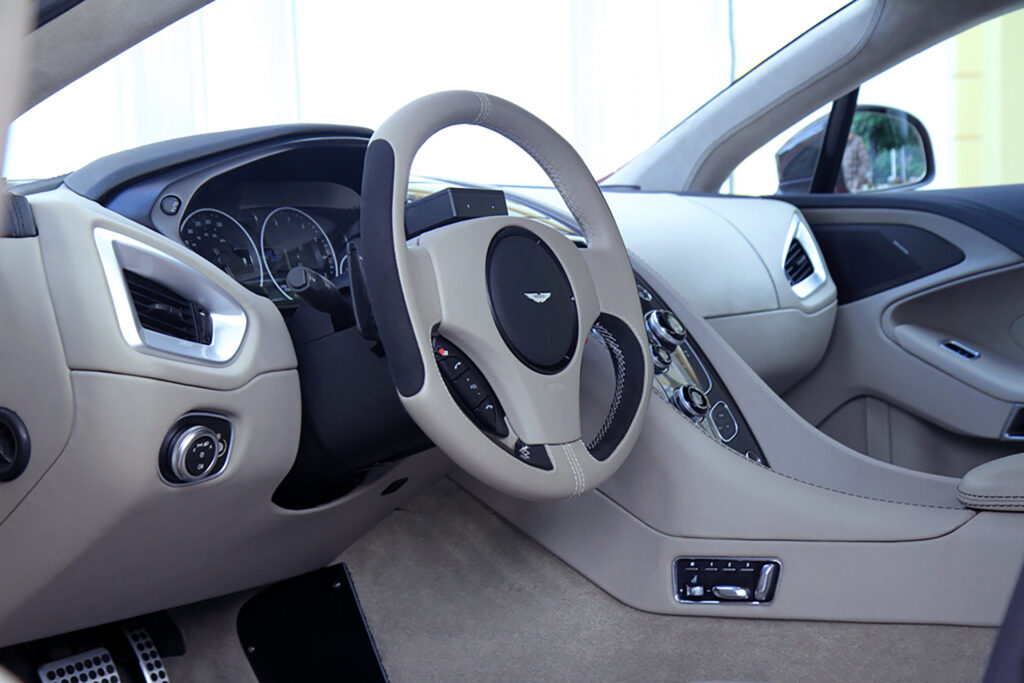

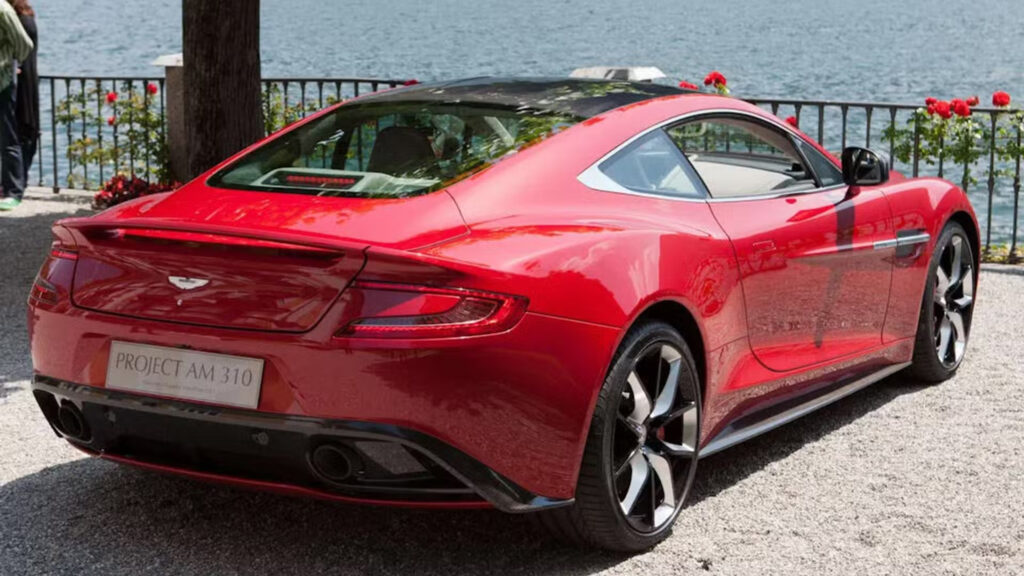

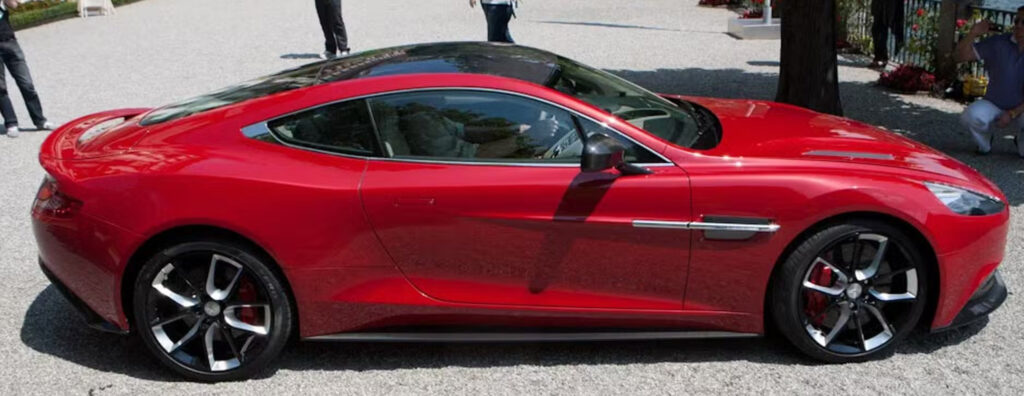

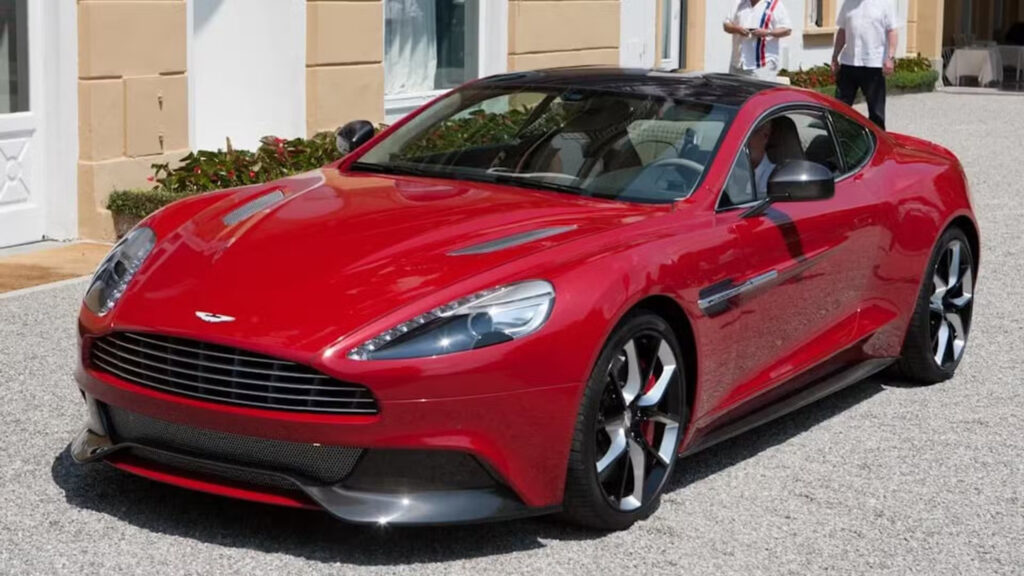

At the 2012 Concorso d’Eleganza Villa d’Este Aston Martin brought out a new concept which successfully synthesizes the One-77 design cues with the rest of the DB9, DBS, Virage line. Entered in the prestigious Concorso d’Eleganza Design Award for Concept Cars and Prototypes, Project AM310 had styling cues from the One-77 such as the rear lights and interior but was obviously an evolution of the DB9/DBS/Virage line. The grille shape was new yet still recognisable as the traditional AM shape but gently revised. When first shown, it was claimed that the car featured coachwork entirely of carbonfibre, a first for Aston Martin. The engine was a much revised V12, still 5.9 litres but with an output around 570 bhp. A few weeks later and it was announced that AM310 would be produced as the new Vanquish and slated for delivery before the end of 2012 just in time for the 100th anniversary of the Aston Martin marque. The smart wheels of AM310 sadly didn’t make production.
| type | Concept / Prototype Car |
| released at | 2012 Villa d’Este |
| built at | Gaydon, Warwickshire, England |
| production | 1 |
| engine | Alloy V12 |
| position | Front Longitudinal |
| aspiration | Natural |
| block material | Aluminum |
| valvetrain | Chain Driven DOHC, 4 Valves per Cyl |
| fuel feed | Electronic Fuel Injection |
| displacement | 5935 cc / 362.2 in³ |
| bore | 89 mm / 3.5 in |
| stroke | 79.5 mm / 3.1 in |
| compression | 10.9:1 |
| power | 380.3 kw / 510 bhp @ 6500 rpm |
| specific output | 85.93 bhp per litre |
| torque | 569.44 nm / 420 ft lbs @ 5750 rpm |
| redline | 6800 |
| body / frame | Aluminium, Magnesium Alloy & Carbon-fibre composite body over Aluminum VH Structure |
| driven wheels | RWD w/LSD, DSC |
| wheel type | Cast Alloy Wheels w/Graphite Finish |
| front tires | 245/35-20 Pirelli P Zero |
| rear tires | 295/30-20 Pirelli P Zero |
| front brakes | Vented Carbon Ceramic Discs w/6-Piston Calipers, ABS, EBD |
| rear brakes | Vented Carbon Ceramic Discs w/4-Piston Calipers, ABS, EBD |
| front wheels | F 50.8 x 21.6 cm / 20 x 8.5 in |
| rear wheels | R 50.8 x 27.9 cm / 20 x 11 in |
| steering | Rack & Pinion w/Servotronic Speed-Sensitive Power Assist |
| f suspension | Double Wishbones w/Coil Springs, Anti-Roll Bar, Active Dampers |
| r suspension | Double Wishbones w/Coil Springs, Anti-Roll Bar, Active Dampers |
| transmission | 6-Speed Transaxle |
| gear ratios | 3.15:1, 1.95:1, 1.44:1, 1.15:1, 0.94:1, 0.76:1 |
| final drive | 3.71:1 |
