1990 Jaguar XJR-15

Built for a new series called the Intercontinental Challenge, the XJR-15 was a limited-production supercar built by Jaguar Sport, a partnership of Jaguar and TWR.

The design was loosely based off the XJR Group-C cars which TWR manufactured for Jaguar. Thus, it retained the XJR-8’s 6-liter engine and basic chassis layout. A new body was drawn up by Peter Stevens which he thought was more distinctively Jaguar.

For clientele wishing to use the car on the road, Jaguar Sport fitted bumpers, blinkers and raised the overall clearance. This greatly affected overall performance as the undertray aerodynamics and suspension were optimized for a very low ride height.

Only 53 were made. ased mechanically on the Le Mans-winning Jaguar XJR-9, the car had an aerodynamic body designed by Tony Southgate and styled by Peter Stevens, who later went on to style the McLaren F1. The car featured in a 1-make racing series called the Jaguar Intercontinental Challenge, which supported 3 Formula 1 races (Monaco, Silverstone and Spa) in 1991. The $1m prize was won by Armin Hahne. XJR-15 was the World’s first fully carbon-fibre road-car.

typeRacing Car
built atEngland
body stylistPeter Stevens
coachbuilderTWR
production50
price $$ 960,165

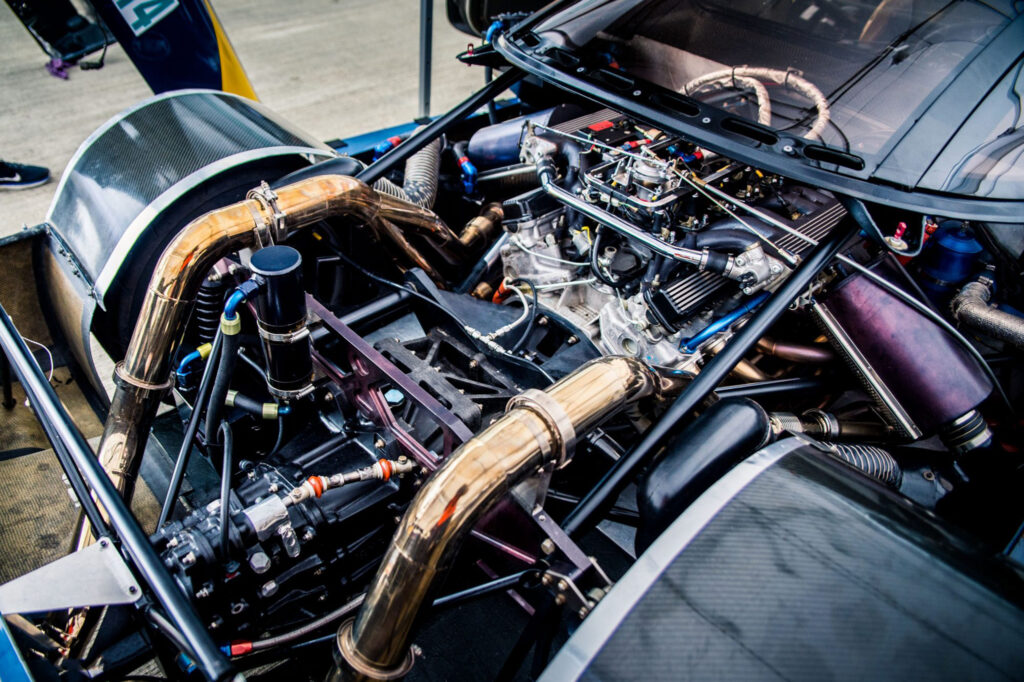

engineV12
positionMid, Longitudinal
aspirationNatural
valvetrainSOHC 2 Valves / Cyl
displacement5993 cc / 365.7 in³
compression11.0:1
power335.6 kw / 450.0 bhp @ 6250 rpm
specific output75.09 bhp per litre
bhp/weight428.57 bhp per tonne
torque569.4 nm / 420.0 ft lbs @ 4500 rpm
body / frameCarbon Fibre
driven wheelsMid Engine / RWD
front brakesVented & Cross Drilled Discs
front wheelsF 43.2 x 24.1 cm / 17 x 9.5 in
rear wheelsR 43.2 x 33.0 cm / 17 x 13 in
steeringRack & Pinion
curb weight1050 kg / 2315 lbs
wheelbase2718 mm / 107 in
length4800 mm / 189.0 in
width1900 mm / 74.8 in
height1100 mm / 43.3 in
transmission6-Speed Manual
gear ratios3.48:1, 2.23:1, 1.59:1, 1.19:1, 0.94:1, 0.77:1
final drive2.91:1
top speed~297.7 kph / 185.0 mph
0 – 60 mph~3.1 second
