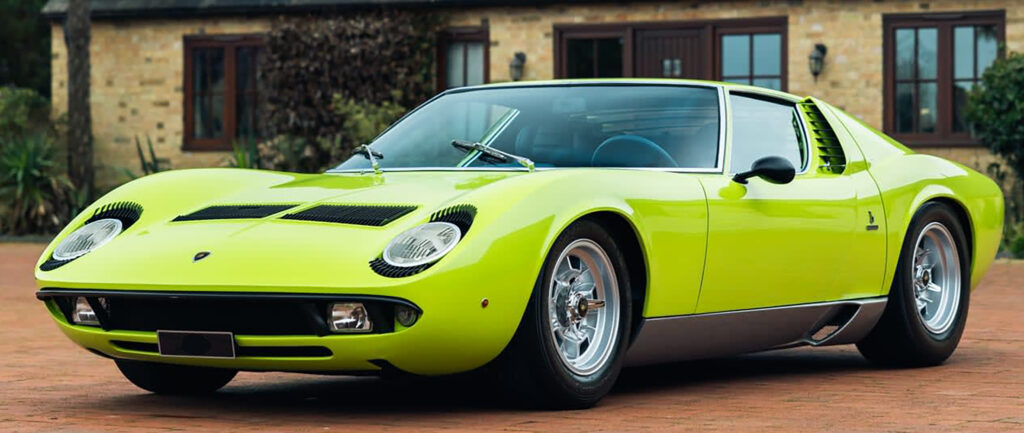

The second generation Miura was released at the 1968 Turin Motor Show with a number of detail upgrades both in and out of the car. It shared the same potent transverse V12 engine and Bertine-designed body from it’s predecessor released three years earlier.

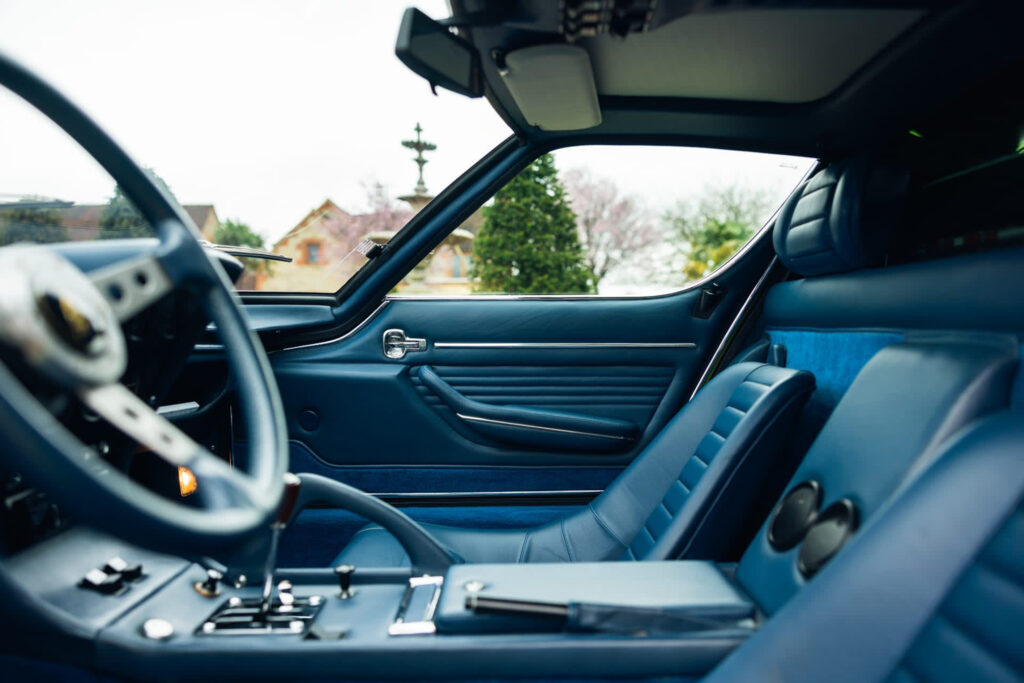

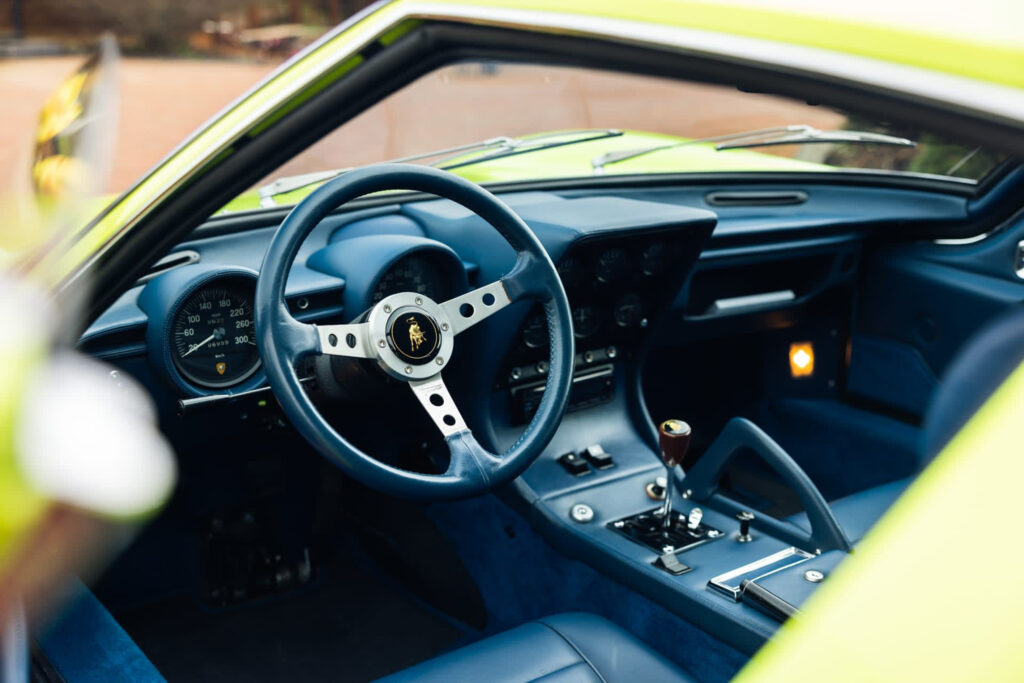

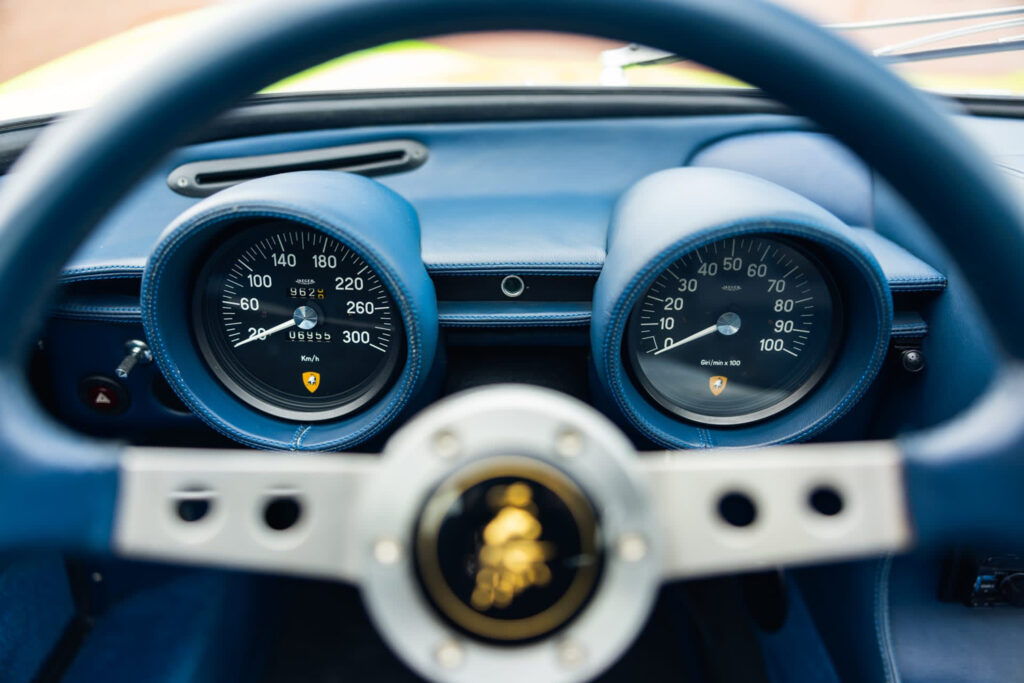

Inside Lamborghini fitted power windows to the Miura S and also offered optional air conditioning for the first time. Detail differences included a locking glove box.

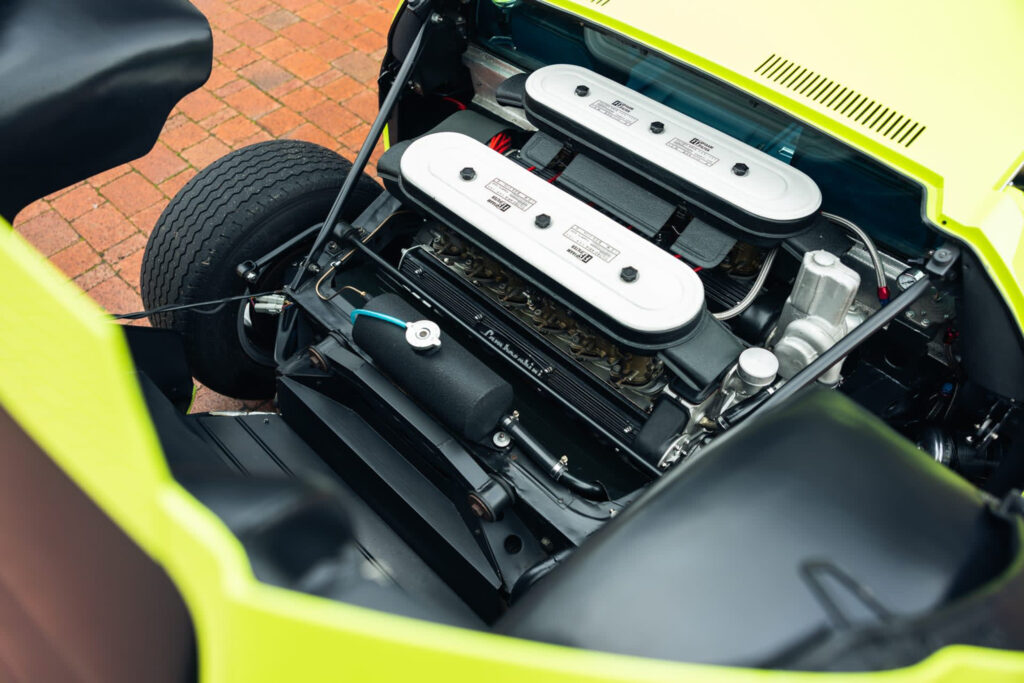

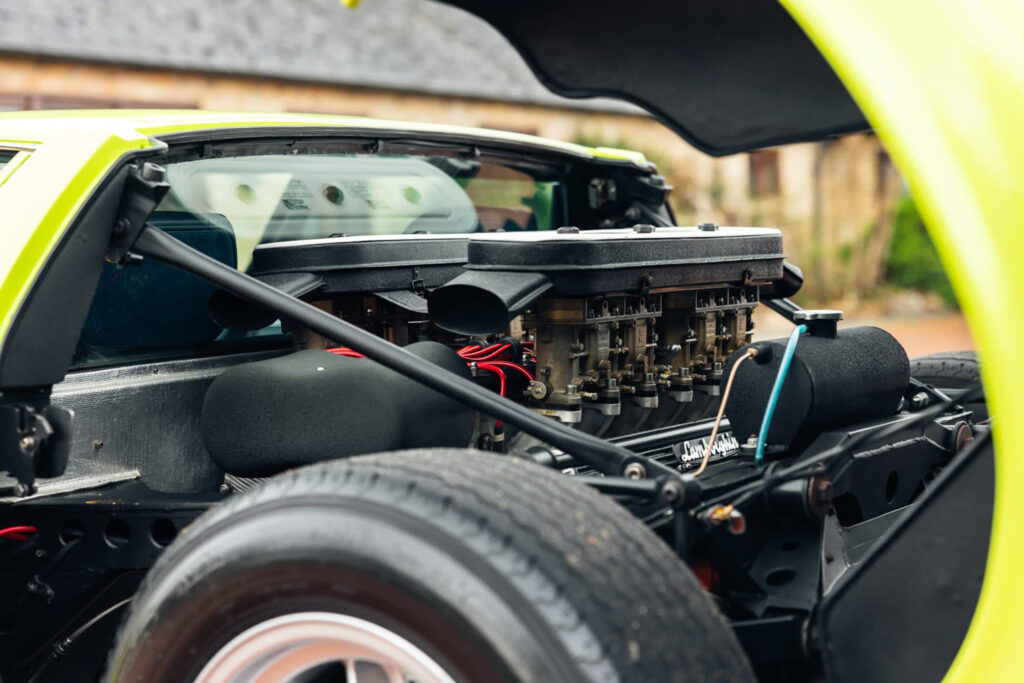

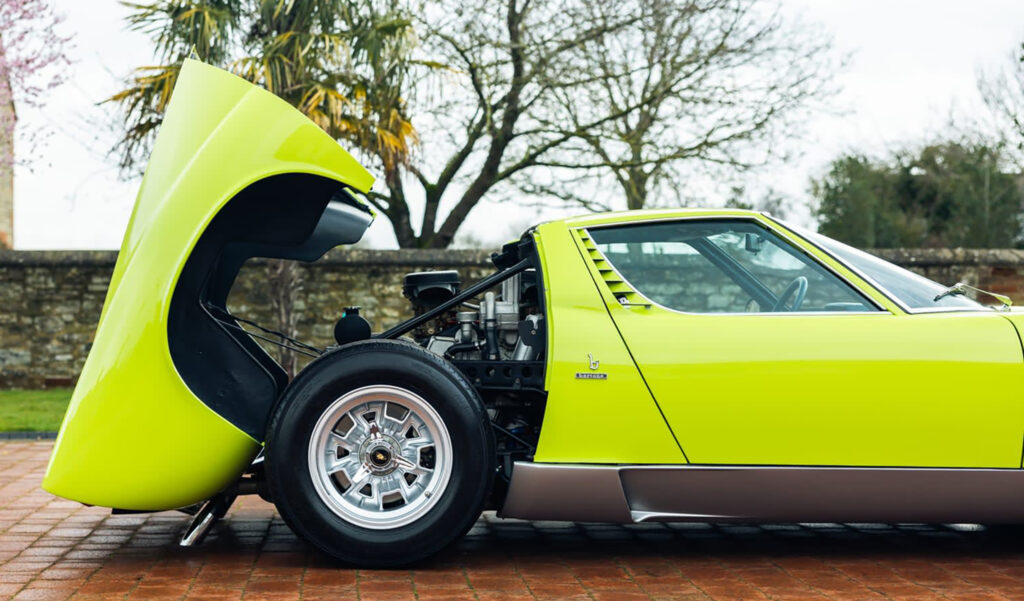

The engine also received am overhual which was good for 20 additional horsepower. This included new intake manifolds and different camshafts.

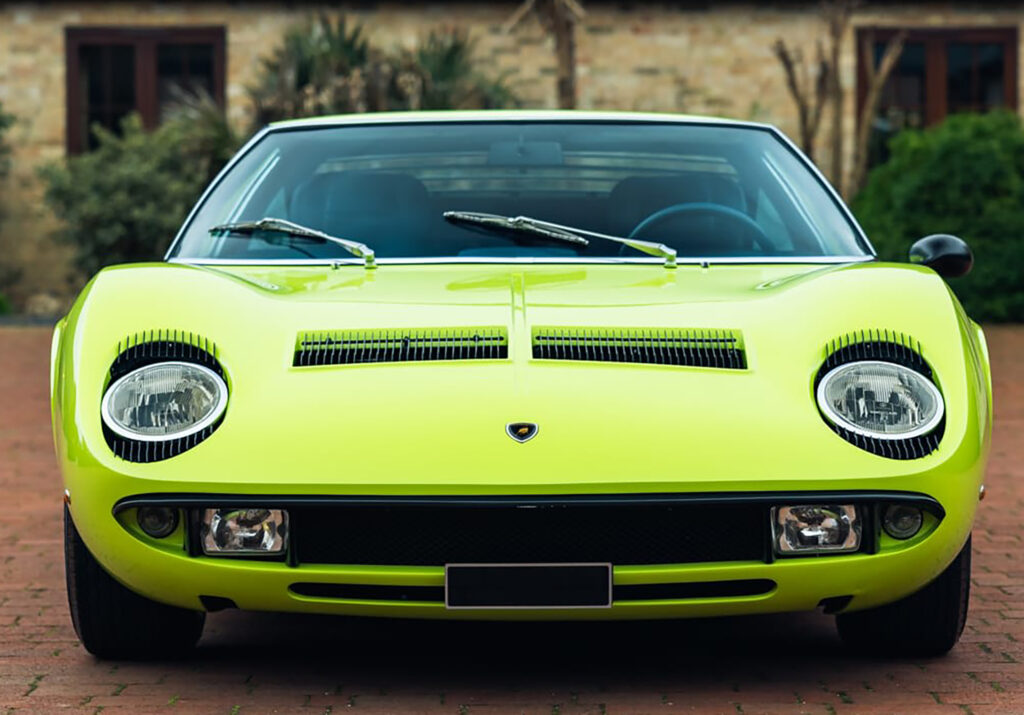

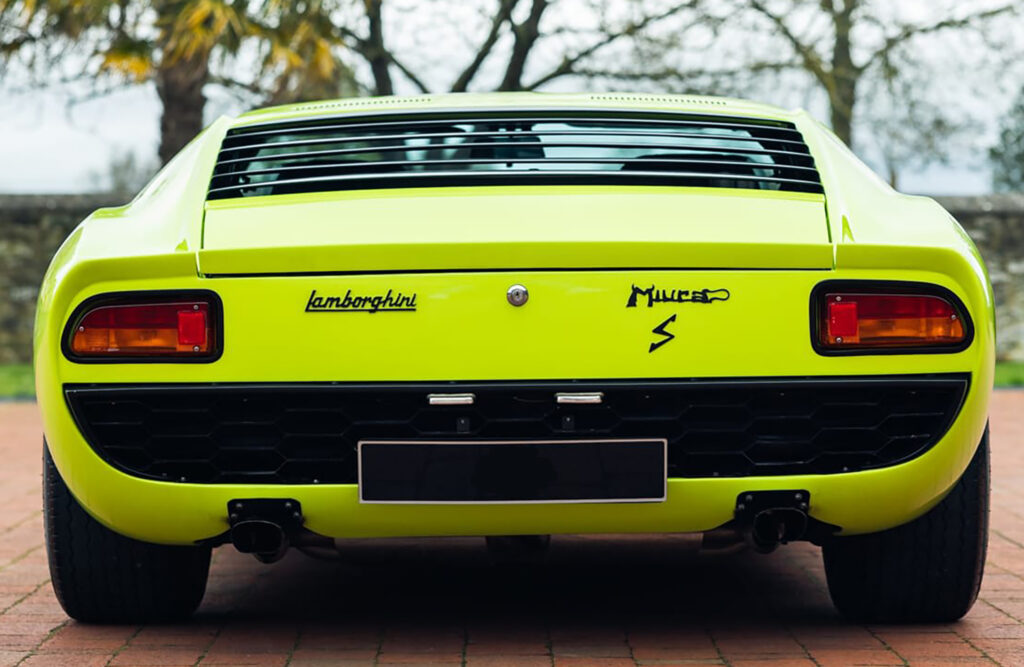

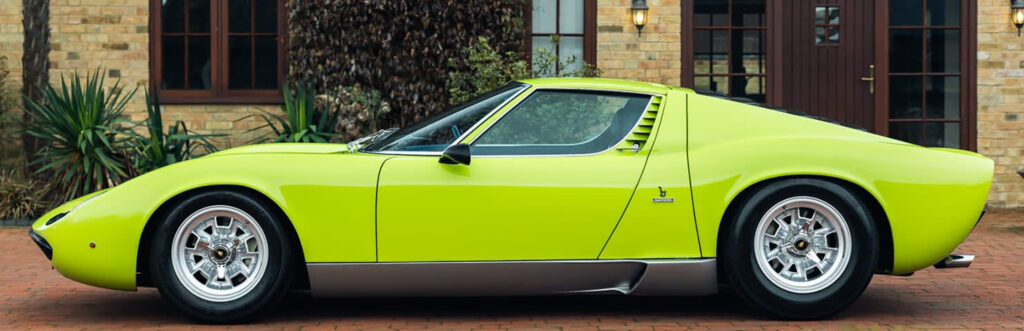

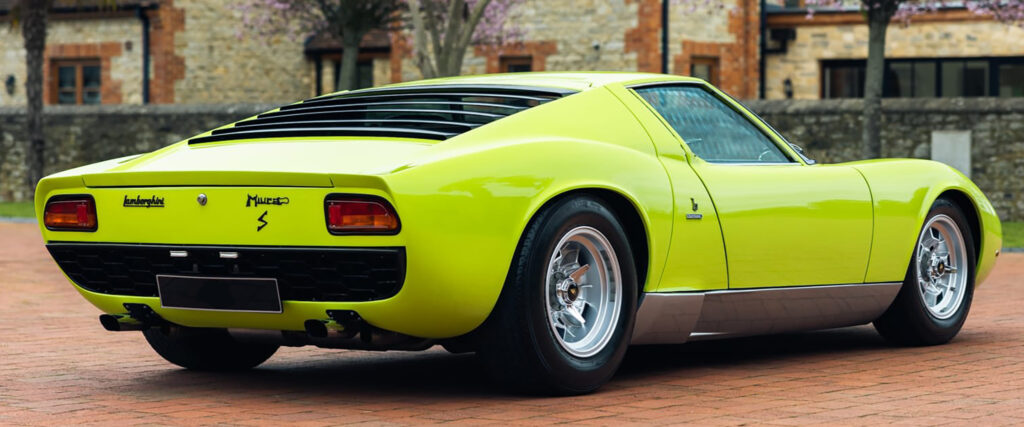

Outside, the car received a new chrome trim piece around the window locking strip. Around 140 cars of this type were produced until the SV replaced the model in March of 1971.
| type | Series Production Car |
| production years | 1968 – 1971 |
| released at | 1968 Turin Motor Show |
| built at | Santa’Agata Bolognese, Italy |
| production | 140 |
| price $ | $ 19,250 |
| engine | V12 |
| position | Mid Transverse |
| aspiration | Natrual |
| valvetrain | SOHC 2 Valves / Cyl |
| displacement | 3929 cc / 239.8 in³ |
| bore | 82.0 mm / 3.23 in |
| stroke | 62.0 mm / 2.44 in |
| compression | 10.2:1 |
| power | 275.9 kw / 370.0 bhp @ 7500 rpm |
| specific output | 94.17 bhp per litre |
| bhp/weight | 280.73 bhp per tonne |
| torque | 389 nm / 286.9 ft lbs @ 5500 rpm |
| redline | 7500 |
| body / frame | Aluminium Panels and Sheet Steel |
| driven wheels | Mid Engine / RWD |
| wheel type | Alloy |
| front tires | GR70VR-15 Pirelli Cinturato HS |
| rear tires | GR70VR-15 Pirelli Cinturato HS |
| front brakes | Vented Discs w/Vacuum Assist |
| rear brakes | Vented Discs w/Vacuum Assist |
| front wheels | F 38.1 x 17.8 cm / 15.0 x 7.0 in |
| rear wheels | R 38.1 x 17.8 cm / 15.0 x 7.0 in |
| steering | Rack & Pinion |
| f suspension | Upper & Lower A-Arms w/Coil Springs over Shock Abosrbers |
| r suspension | Upper & Lower A-Arms w/Coil Springs over Shock Abosrbers |
| curb weight | 1318 kg / 2905 lbs |
| wheelbase | 2504 mm / 98.6 in |
| front track | 1412 mm / 55.6 in |
| rear track | 1412 mm / 55.6 in |
| length | 4390 mm / 172.8 in |
| width | 1780 mm / 70.1 in |
| height | 1100 mm / 43.3 in |
| transmission | 5-Speed Manual |
| gear ratios | 2.520:1, 1.735:1, 1.225:1, 1.00:1, 0.815:1 |
| final drive | 4.09:1 |
| top speed | ~270.4 kph / 168.0 mph |
| 0 – 60 mph | ~5.5 seconds |
| 0 – 100 mph | ~12.3 seconds |
| 0 – 1/4 mile | ~13.9 second |
